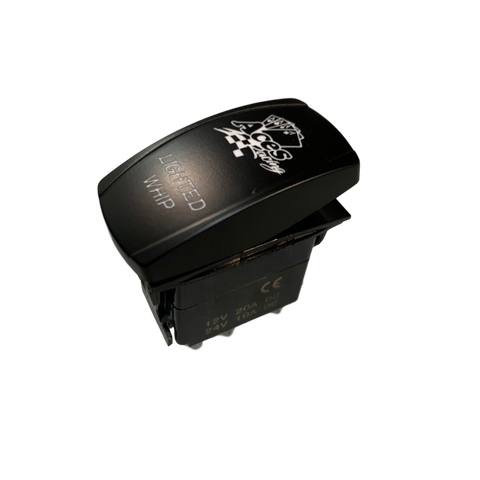

20 Amp 12 Volt ON-OFF Rocker Switch
Available in Blue, Red, and White
LASER ETCHED WITH TWO L.E.D. LIGHTS
- Single Pole Single Throw ON-OFF Switch
- Black hard surface rocker
- Surface size is 2″ (50mm) x 1″ (25mm)
- Standard size mounting hole 1.41″ (36mm) x .86″ (22mm). This is the standard size of most switch holes in modern vehicles.

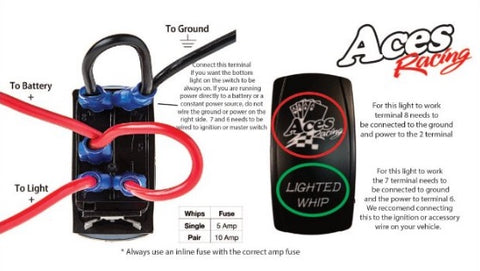

- Upper light is ON when the switch is pressed UP
- Lower LED is independent and can be wired to separate dash light circuit.
- Both LEDs have separate grounds.
- No rear barriers between terminals.
- Lower light Waterproof rating of IP66.
